SPECIFICATIONS

Application: Home / Outdoor Energy Storage

BMS: 100A

Brand Name: Wattcycle

Cell: EV Grade A+ LiFePO4 Cells

Certification: CE,FCC,RoHS,UL

Charge Method: CC / CV

Charge Temperature: 0℃ to 50℃ / 32℉ to 122℉

Charge Voltage: 14.6V ± 0.2V

Discharge Temperature: -20℃ to 70℃ / -4℉ to 158℉

Hign-concerned Chemical: None

Housing Material: ABS (Flame Retardant Plastic)

Internal Resistance: ≤40mΩ

Low-Temperature Charging Protection Auto Recovery: Yes (41℉/5℃)

Low-Temperature Protection: Yes (32℉/0℃)

Max Depth of Discharge (DOD): 100%

Max. Continuous Charge Current: 100A

Max. Continuous Discharge Current: 100A

Max. Continuous Output Power: 1280W

Max. Discharge Current: 300±50A (≤5s)

Max. Expansion: 4S4P

Model Number: 12V 100AH

Nominal Capacity: 100Ah

Origin: Mainland China

Rated Voltage: Others

Recommend Charge Current: 20A (0.2C)

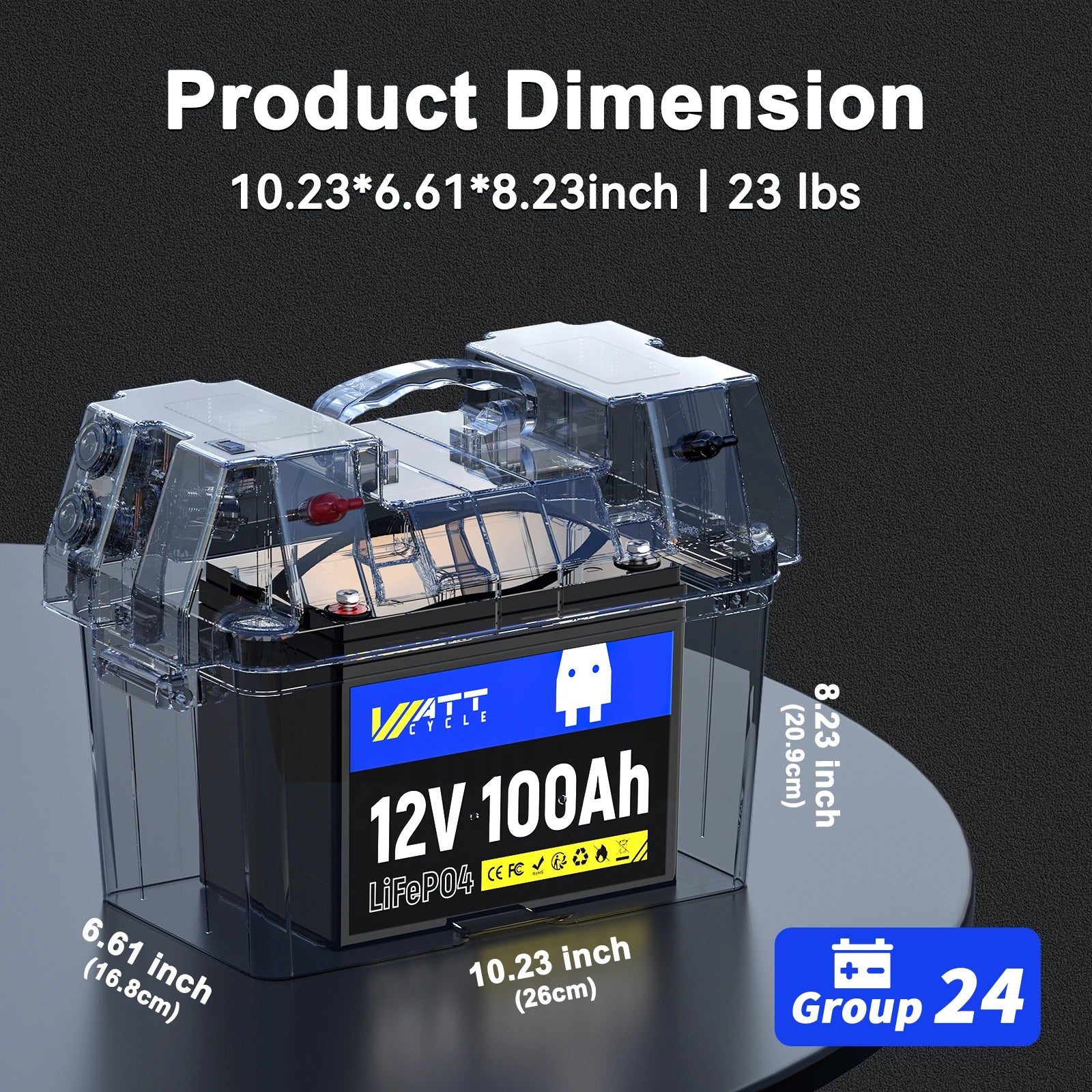

Size: 10.2 x 6.6 x 8.2 inches

Storage Temperature: -10℃ to 50℃ / 14℉ to 122℉

Terminal: M8 bolts

Type: LiFePO4

Voltage: 12.8V

Warranty: 5 years

Waterproof Rating: IP65

Weight: 23.0lbs / 10.5kg
